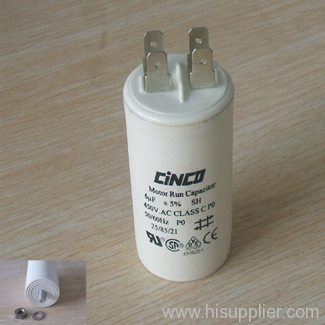

Model No.: CBB60

CBB60 Capacitors Description:
The capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed

CBB60 Capacitors Description:

The capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.

CBB60 Capacitors has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

Applications

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Technical Specifications

Standard:IEC 60252-1:2001

Technical features:

Climate type:40/70/21

Capacitance tolerance:± 5%

Insulation Resistance:≥3000S·µF I.R

Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)

Application requirements:

Altitude:≤2000m

Residual voltage in application :less than 10% of rated voltage.

Allowed maximum voltage: less than 1.1 times of rated voltage

Permissible maximum current: less than 1.3 times of rated current.

CBB60 Capacitors Size

No Model Capacitance Size

1 CBB60 0.5MFD 450VAC 25x57mm

2 CBB60 1MFD 450VAC 25x57mm

3 CBB60 2MFD 450VAC 25x57mm

4 CBB60 2.5MFD 450VAC 25x57mm

5 CBB60 3MFD 450VAC 25x57mm

6 CBB60 4MFD 450VAC 25x57mm

7 CBB60 4.5MFD 450VAC 30x65mm

8 CBB60 5MFD 450VAC 30x65mm

9 CBB60 6MFD 450VAC 30x65mm

10 CBB60 7MFD 450VAC 30x65mm

11 CBB60 7.5MFD 450VAC 30x65mm

12 CBB60 8MFD 450VAC 30x65mm

13 CBB60 10MFD 450VAC 30x65mm

14 CBB60 12MFD 450VAC 30x65mm

15 CBB60 12.5MFD 450VAC 30x65mm

16 CBB60 15MFD 450VAC 35x70mm

17 CBB60 16MFD 450VAC 35x70mm

18 CBB60 18MFD 450VAC 35x70mm

19 CBB60 20MFD 450VAC 40x70mm

20 CBB60 25MFD 450VAC 40x70mm

21 CBB60 30MFD 450VAC 45x92mm

22 CBB60 35MFD 450VAC 45x92mm

23 CBB60 40MFD 450VAC 45x92mm

24 CBB60 45MFD 450VAC 45x92mm

25 CBB60 50MFD 450VAC 50x100mm

26 CBB60 55MFD 450VAC 50x100mm

27 CBB60 60MFD 450VAC 50x116mm

28 CBB60 70MFD 450VAC 60x120mm

29 CBB60 80MFD 450VAC 60x120mm

30 CBB60 90MFD 450VAC 60x120mm

31 CBB60 100MFD 450VAC 60x120mm
